Обгонные муфты Stieber серии RSCI 180-300

Описание аналога RINGSPANN в PDF

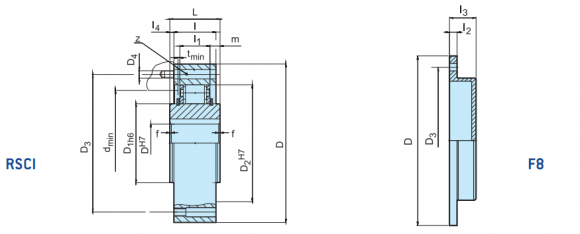

	Z	d^h7 [mm]	T¹⁾ KN [Nm]	n²⁾ imix [min^-1]	n³⁾ imax [max^-1]	n⁴⁾ imax [max^-1]	D [mm]	D_1h6 [mm]	D_2^h7 [mm]	D₃ [mm]	D₄ [mm]	L [mm]	I [mm]	I₁ [mm]	I₄ [mm]	fx45⁰ [mm]	d_min [mm]	m [mm]	t_min [mm]	[kg]
STIEBER_RSCI 180_300	12	180	31500	150	310	1300	412	240	310	360	M20	90	80	53	5	3.5	280	18.6	3	59
STIEBER_RSCI 180M_300	18	180M	50000	115	260	1300	422	240	310	370	M20	120	120	83	0	4	280	18.5	2	92
STIEBER_RSCI 180 II-300	24	180II	63000	150	310	1300	412	240	310	360	M20	160	160	118	0	3.5	280	21	3	116
STIEBER_RSCI 180 II-M-300	24	180II-M	100000	115	260	1300	425	240	310	370	M24	240	240	176	0	4	280	32	3	190
STIEBER_RSCI 220-300	16	220	42500	135	290	1100	470	290	360	410	M20	105	80	60	12.5	4	330	19.5	3	90
STIEBER_RSCI 220M-300	16	220M	68000	105	240	1100	480	290	360	410	M24	120	120	83	0	4	330	18.5	2	109
STIEBER_RSCI 220 II-300	18	220II	85000	135	290	1100	480	290	360	410	M24	160	160	130	0	4	330	15	2	159
STIEBER_RSCI 220 II-M-300	20	220II-M	136000	105	240	1100	490	290	360	425	M30	240	240	176	0	4	330	32	2	249
STIEBER_RSCI 240-300	16	240	52000	130	275	1100	500	320	390	440	M20	105	90	60	7.5	4	360	15	2	95
STIEBER_RSCI 240 M-300	16	240M	83000	100	225	1100	520	320	390	440	M24	120	120	83	0	4	360	18.5	2	137
STIEBER_RSCI 240 II-300	24	240II	104000	130	275	1100	505	320	390	440	M24	180	180	132	0	4	360	24	2	191
STIEBER_RSCI 240 II-M-300	24	240II-M	166000	100	225	1100	530	320	390	440	M30	240	240	176	0	4	360	32	2	292
STIEBER_RSCI 260-300	16	260	65000	125	260	1000	550	360	430	500	M24	105	105	60	0	4	400	22.5	2	130
STIEBER_RSCI 260M-300	24	260M	100000	95	215	1000	580	360	430	500	M24	125	125	83	0	4	400	21	2	183
STIEBER_RSCI 260 II-300	24	260II	130000	125	260	1000	550	360	430	500	M24	210	210	132	0	4	400	39	2	262
STIEBER_RSCI 260 II-M-300	24	260II-M	200000	95	215	1000	580	360	430	500	M30	250	250	176	0	4	400	37	2	369
STIEBER_RSCI 300-300	24	300	78000	115	235	1000	630	410	480	560	M24	105	105	60	0	4	460	22.5	3	174
STIEBER_RSCI 300 M-300	24	300M	125000	90	205	1000	630	410	480	560	M24	125	125	83	0	4	460	21	3	210
STIEBER_RSCI 300 II-300	24	300II	156000	115	235	1000	630	410	480	560	M24	210	210	134	0	4	460	38	3	351
