Обгонные муфты Stieber серии RSCI 20-130

Описание аналога RINGSPANN в PDF

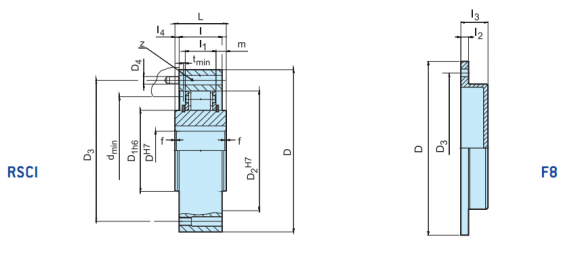

	Z	d^h7 [mm]	T¹⁾ KN [Nm]	n²⁾ imix [min^-1]	n³⁾ imax [max^-1]	n⁴⁾ imax [max^-1]	D [mm]	D_1h6 [mm]	D_2^h7 [mm]	D₃ [mm]	D₄ [mm]	L [mm]	I [mm]	I₁ [mm]	I₄ [mm]	fx45⁰ [mm]	d_min [mm]	m [mm]	t_min [mm]	I₂ [mm]	I₃ [mm]	RSCI [kg]	[kg]
STIEBER RSCI 6	6	20	212	380	875	14500	90	36	66	78	M6	35	35	25	0	0.8	52	5	1	8	16	1.5	0.3
STIEBER RSCI 6	6	25	319	355	825	14300	95	40	70	82	M6	35	35	25	0	1.0	56	5	1	8	16	1.6	0.4
STIEBER RSCI 6	6	30	375	350	780	11400	100	45	75	87	M6	35	35	25	0	1.5	62	5	1	8	16	1.8	0.4
STIEBER RSCI 8	8	35	550	320	740	10500	110	50	80	96	M8	35	35	25	0	1.5	66	5	1	8	16	2.1	0.5
STIEBER RSCI 8	8	40	800	315	720	7600	125	60	90	108	M8	35	35	25	0	1.5	76	5	1	10	21	2.7	0.7
STIEBER RSCI 8	8	45	912	285	665	6600	130	65	95	112	M8	35	35	25	0	1.5	82	5	1	10	21	2.9	0.9
STIEBER RSCI 8	8	50	1400	265	610	6100	150	80	110	132	M8	40	40	25	0	1.5	100	7.5	1	10	21	4.3	1
STIEBER RSCI 8	8	60	2350	200	490	5300	175	85	125	155	M8	240	240	176	0	4	330	32	2	12	35	6.5	1.8
STIEBER RSCI 12	12	70	3050	210	480	4100	190	100	140	165	M10	105	90	60	7.5	4	360	15	2	12	35	8.6	1.9
STIEBER RSCI 12	12	80	4500	190	450	3600	210	120	160	185	M10	120	120	83	0	4	360	18.5	2	12	35	12.5	2.6
STIEBER RSCI 12	12	80M	5800	140	350	4000	210	120	160	185	M10	180	180	132	0	4	360	24	2	12	35	13.1	2.6
STIEBER RSCI 12	12	90	5600	180	420	2700	230	140	180	206	M12	240	240	176	0	4	360	32	2	12	35	17.4	3.0
STIEBER RSCI 12	12	90M	8700	130	330	3000	245	140	180	218	M12	105	105	60	0	4	400	22.5	2	12	35	18.3	3.0
STIEBER RSCI 12	12	100	10500	200	455	2700	290	140	210	258	M16	125	125	83	0	4	400	21	2	15	37	28	5.0
STIEBER RSCI 12	12	100M	16000	170	400	2400	290	170	210	258	M16	210	210	132	0	4	400	39	2	12	35	30	5.0
STIEBER RSCI 12	12	130	15750	180	415	2400	322	170	240	278	M16	250	250	176	0	4	400	37	2	15	37	35	6.0
